Product Overview

Material: Made of UL-approved nylon PA66, customizable fire rating UL94V-2 / 0

Color: Black (B), Gray (G)

Working temperature: static -40 ° C to 100 ° C, short time can reach 120 ° C dynamic -20 ° C to 80 ° C, or heat resistance to 100 ° C in an instant

Product features: The design of special clamping claws, strong tensile strength of the clamping wave tube, ultra-fast insertion and removal, and improve installation efficiency

Technical Parameter

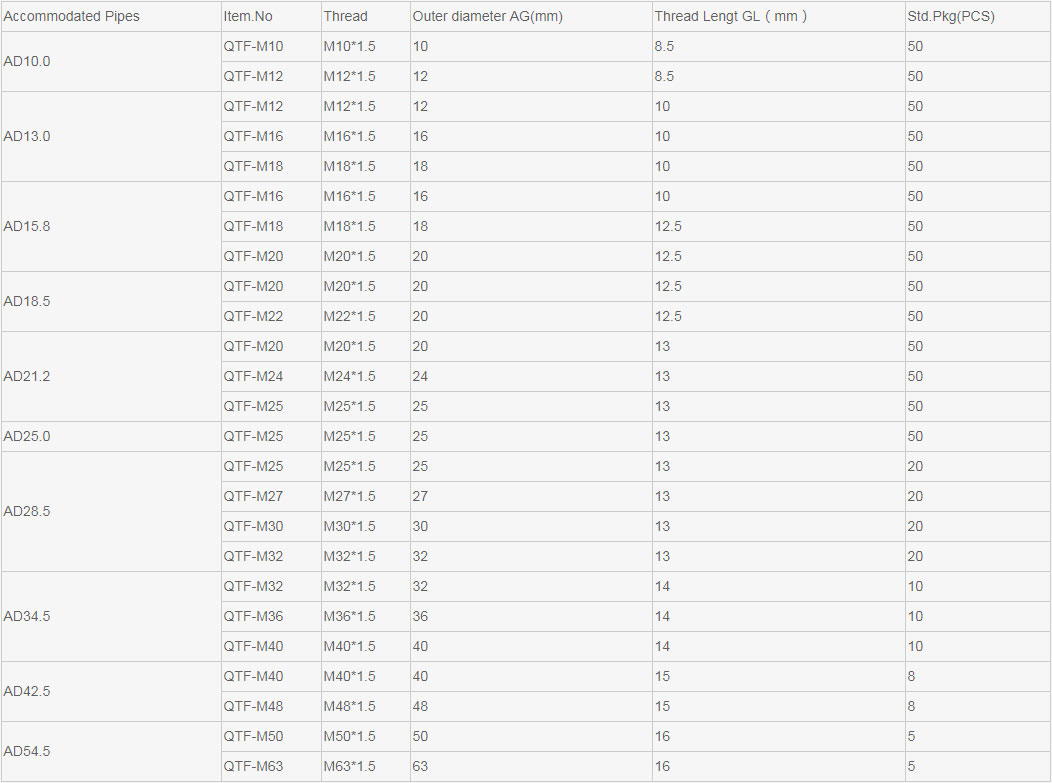

QTF-M  Metric Thread

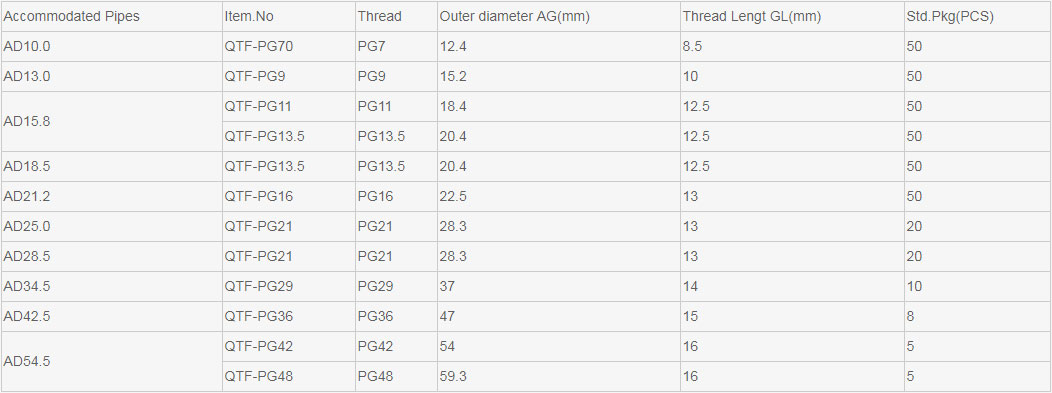

QTF-P PG Thread

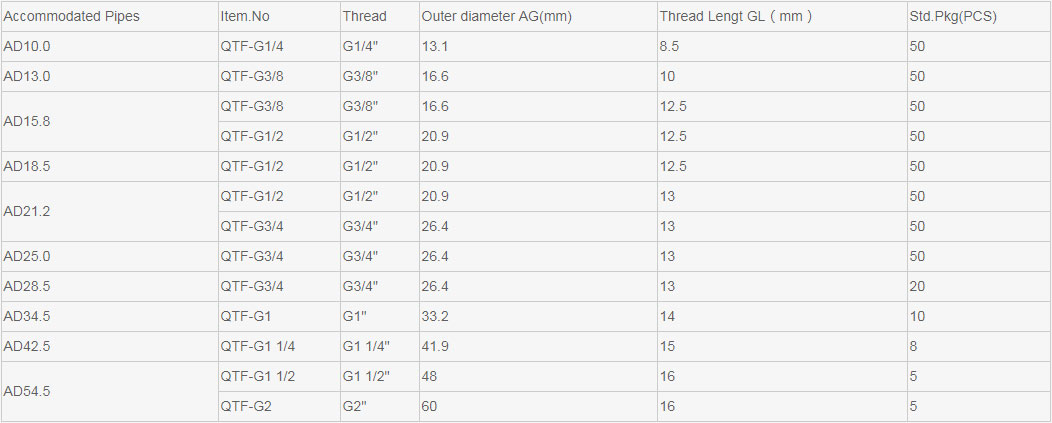

QTF-G G Thread
